Why do 35mm slides warp or bend?

Slides warp due to humidity, heat, and tight storage. The most common cause we see is Sawyer brand carousel trays stored upright — the weight of slides above bends the slides below over decades. Attic and basement storage with fluctuating humidity is also a frequent cause.

Can you scan warped or bent slides?

Yes. We hand-feed warped slides individually to prevent jamming the automatic scanner transport. Moderately to severely bent slides are placed in a flatbed film holder which keeps the film flat for sharp focus. We have scanned thousands of warped slides successfully.

Is there an extra charge for scanning bent slides?

Yes. Warped slides require hand-feeding which takes significantly more time. We charge a problem slide surcharge only for slides that actually need hand-feeding. We always contact you before applying any extra fee.

How do I tell if my slides are bent?

Hold a slide up to a light source and look at it edge-on. A flat slide appears as a straight line. A warped slide shows a visible curve. Even a few millimeters of warp can jam an automatic scanner feeder.

Should I try to flatten my warped slides before sending them?

Do not apply heat or steam — this can destroy the emulsion permanently. Gentle pressure at room temperature for several days can reduce mild warps safely. But it is fine to send bent slides as-is. We handle this every day.

Affordable Scanning Services
www.Slides.Pics

Premium Photoshop Editing On Every Scan.
49¢ most slides. Expert Slide and Photo
Scanning Since 2002.
4,000 ppi Extra High Res Scanning.
We can make PRINTS from your Slides.
Personally Processed with care in Wisconsin.

Warped or Bent Slides: Causes, Scanning & What to Expect

Warped or bent slides are one of the most common problems we see — and one of the most misunderstood. Many customers don't realize their slides are bent until we tell them. This guide explains why slides warp, which storage situations cause it most often, how we scan bent slides safely, and what it costs.

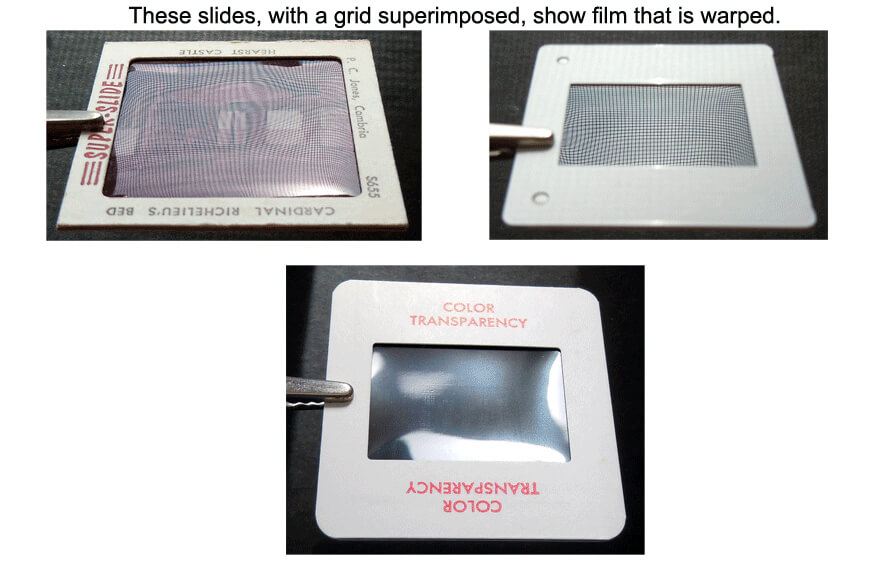

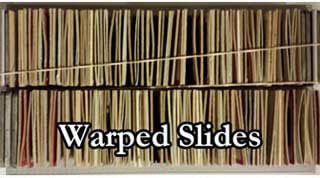

Warped slide films and holders — examples of bent 35mm slides — Here you can see some badly warped slides. Almost 100% chance they are Sawyer projected slides.

Why Do Slides Warp?

Humidity and dampness. Slides with cardboard holders and stored in basements, attics, garages, or anywhere with fluctuating humidity are at high risk. Even slides stored in a dry environment can warp if they were exposed to humidity at some point in their life and never straightened out.

Heat. Slides left in hot cars, near heating vents, or in sun-exposed attics can warp from heat cycling. The cardboard mount expands and contracts while the film emulsion responds differently, causing a permanent bend.

Tight carousel storage. Older Sawyer brand carousels hold slides in a tight circular arrangement. When the tray is tipped on end or stored at an angle, the weight of the slides above presses down on the slides below, bending them over time. We see severe warping in Sawyer carousels far more often than any other storage format.

Improper packing. Slides not packed tightly in boxes, rubber-banded or crushed under heavy objects can develop permanent bends.

The Sawyer Carousel Problem

We mention Sawyer carousels specifically because we see this so often. Sawyer produced carousel-style slide projectors and trays that competed with Kodak in the 1960s and 1970s. Their trays hold slides in a tight circular arrangement with less clearance than Kodak trays.

The pressure is do much that it will actually bend the slides. Some people think that this was not a design flaw but a deliberate "feature" to stop people with Sawyer projectors from switching to Kodak projectors because the slides from a Sawyer would jam up in a Kodak because the slides are permanently bend.

If your slides were stored in Sawyer carousels, you will need to remove and stack them.

Handling Fees for Bent Slides

Because warped slides require significantly more time per slide, we charge an additional handling fee. This is noted on our order forms as the "problem slide" surcharge.

We charge only for slides that actually require extra work for us— not every slide in a batch. However, identifying which slides need the extra work requires examining every slide, so there is some overhead regardless.

If you are unsure whether your slides are bent: Include a note with your order. We will check during intake and contact you before applying any surcharge. We will never add fees without letting you know first.

Will a Warped Slide Produce a Blurry Scan?

It can, if the warp is severe enough to hold part of the film outside the scanner's depth of field. Mild to moderate warps sometimes cause visible blur. Severe warps — where the center of the film is significantly higher or lower than the edges — are more likely to produce focus variation.

We will scan every slide you send us, even warped slides. We will try to get the main person or subject into proper focus.

Frequently Asked Questions

How do I know if my slides are bent?

Hold a slide up to a light source and look at it edge-on. A flat slide will appear as a straight line. A warped slide will show a visible curve or bow. Even a few millimeters of warp can cause problems.

All my slides from one carousel are bent the same way — is that normal?

Yes, and it is a strong indicator of Sawyer carousel storage. The consistent bend comes from the pressure of the tray holding the slides at the same angle for decades. We see this pattern often and know exactly how to handle it.

Should I try to flatten my slides before sending them?

Do not apply heat or steam. Gentle pressure — placing slides flat under a light weight at room temperature for several days — can reduce mild warps without risk. But honestly, don't worry about it. Send them as they are and let us handle it.
